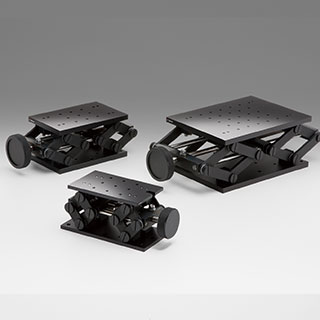

Z AXIS TRANSLATION STAGES LJ/LJA Series
페이지 정보
본문
Z axis precision stages that achieve extremely high parallelism using OptoSigma’s unique adjustment technology.
◦The top and bottom plates of the LJ model are made of steel (magnetic bases can be attached and detached), and the LJA models are made of aluminum.
◦Pantograph mechanism provides a large adjustment range and high load capacity.
◦Rotate the adjustment knob to adjust the height.
◦Fine pitch lead screw enables good sensitivity.
◦Stable locking is achieved with a split clamp system.
|
MODEL NUMBER |
TABLE SIZE(mm) |
MOTION RANGE(mm) |
LOAD CAPACITY |
PRICE(￥) |
|
LJ-80133 |
80x132 |
22 |
196N(20.0kgf) |
93,000 |
|
LJA-80133 |
80x132 |
22 |
196N(20.0kgf) |
55,000 |
|
LJA-80133-M6 |
80x132 |
22 |
196N(20.0kgf) |
55,000 |
|
LJA-80133UU |
80x132 |
22 |
196N(20.0kgf) |
55,000 |
|
LJ-10163 |
100x160 |
40 |
245N(25.0kgf) |
95,000 |
|
LJA-10163 |
100x160 |
40 |
245N(25.0kgf) |
60,000 |
|
LJA-10163-M6 |
100x160 |
40 |
245N(25.0kgf) |
60,000 |
|
LJA-10163UU |
100x160 |
40 |
245N(25.0kgf) |
60,000 |
|
LJ-16223 |
160x220 |
70 |
294N(30.0kgf) |
112,000 |
|
LJA-16223 |
160x220 |
70 |
294N(30.0kgf) |
65,000 |
|
LJA-16223-M6 |
160x220 |
70 |
294N(30.0kgf) |
65,000 |
|
LJA-16223UU |
160x220 |
70 |
294N(30.0kgf) |
65,000 |
