XZ AXIS TRANSLATION STAGES TSD-4 Series
페이지 정보
본문

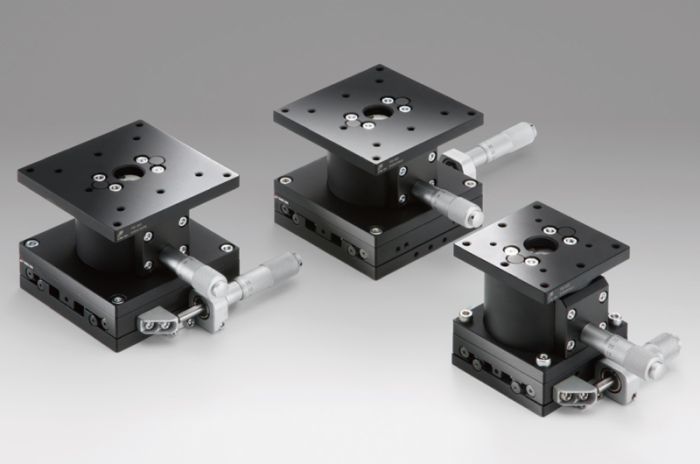

This XZ assembly incorporates an integrated (X) axis steel linear stage and a (Z) vertical axis steel stage with a horizontal flat top plate.
There are options for micrometer position and fine pitch screws.
|
MODEL NUMBER |
TABLE SIZE(mm) |
MOTION RANGE(mm) |
LOAD CAPACITY |
PRICE(￥) |
|
TSD-254C |
25x25 |
X:±3, Z:±3 |
29.4N(3.0kgf) |
58,000 |
|
TSD-254S |
25x25 |
X:±3, Z:±3 |
29.4N(3.0kgf) |
58,000 |
|
TSD-254SR |
25x25 |
X:±3, Z:±3 |
29.4N(3.0kgf) |
58,000 |
|
TSD-404C |
40x40 |
X:±6.5, Z:±3 |
88.3N(90kgf) |
63,000 |
|
TSD-404CUU |
40x40 |
X:±6.5, Z:±3 |
88.3N(90kgf) |
63,000 |
|
TSD-404S |
40x40 |
X:±6.5, Z:±3 |
88.3N(90kgf) |
63,000 |
|
TSD-404SUU |
40x40 |
X:±6.5, Z:±3 |
88.3N(90kgf) |
63,000 |
|
TSD-404SR |
40x40 |
X:±6.5, Z:±3 |
88.3N(90kgf) |
63,000 |
|
TSD-404SRUU |
40x40 |
X:±6.5, Z:±3 |
88.3N(90kgf) |
63,000 |
|
TSD-604C |
60x60 |
X:±6.5, Z:±5 |
147N(15.0kgf) |
69,000 |
|
TSD-604S |
60x60 |
X:±6.5, Z:±5 |
147N(15.0kgf) |
69,000 |
|
TSD-604SR |
60x60 |
X:±6.5, Z:±5 |
147N(15.0kgf) |
69,000 |
|
TSD-654C-M6 |
65x65 |
X:±6.5, Z:±5 |
147N(15.0kgf) |
73,000 |
|
TSD-654CUU |
65x65 |
X:±6.5, Z:±5 |
147N(15.0kgf) |
73,000 |
|
TSD-654S-M6 |
65x65 |
X:±6.5, Z:±5 |
147N(15.0kgf) |
73,000 |
|
TSD-654SUU |
65x65 |
X:±6.5, Z:±5 |
147N(15.0kgf) |
73,000 |
|
TSD-654SR-M6 |
65x65 |
X:±6.5, Z:±5 |
147N(15.0kgf) |
73,000 |
|
TSD-654SRUU |
65x65 |
X:±6.5, Z:±5 |
147N(15.0kgf) |
73,000 |
|
TSD-804C |
80x80 |
X:±12.5, Z:±5 |
147N(15.0kgf) |
92,000 |
|
TSD-804S |
80x80 |
X:±12.5, Z:±5 |
147N(15.0kgf) |
92,000 |
|
TSD-804SR |
80x80 |
X:±12.5, Z:±5 |
147N(15.0kgf) |
92,000 |
|
TSD-1004C |
100x100 |
X:±12.5, Z:±10 |
245N(25.0kgf) |
113,000 |
|
TSD-1004S |
100x100 |
X:±12.5, Z:±10 |
245N(25.0kgf) |
113,000 |
|
TSD-1004SR |
100x100 |
X:±12.5, Z:±10 |
245N(25.0kgf) |
113,000 |
|
TSD-1204CH |
120x120 |
X:±20, Z:±5 |
245N(25.0kgf) |
146,000 |
|
TSD-1204SH |
120x120 |
X:±20, Z:±5 |
245N(25.0kgf) |
146,000 |
|
TSD-1204SRH |
120x120 |
X:±20, Z:±5 |
245N(25.0kgf) |
146,000 |
|
TSD-1204C-M6 |
120x120 |
X:±20, Z:±5 |
245N(25.0kgf) |
146,000 |
|
TSD-1204CHUU |
120x120 |
X:±20, Z:±5 |
245N(25.0kgf) |
146,000 |
|
TSD-1204SH-M6 |
120x120 |
X:±20, Z:±5 |
245N(25.0kgf) |
146,000 |
|
TSD-1204SHUU |
120x120 |
X:±20, Z:±5 |
245N(25.0kgf) |
146,000 |
|
TSD-1204SRH-M6 |
120x120 |
X:±20, Z:±5 |
245N(25.0kgf) |
146,000 |
|
TSD-1204SRHUU |
120x120 |
X:±20, Z:±5 |
245N(25.0kgf) |
146,000 |
