XZ AXIS TRANSLATION STAGES TAM-4L Series
페이지 정보
본문

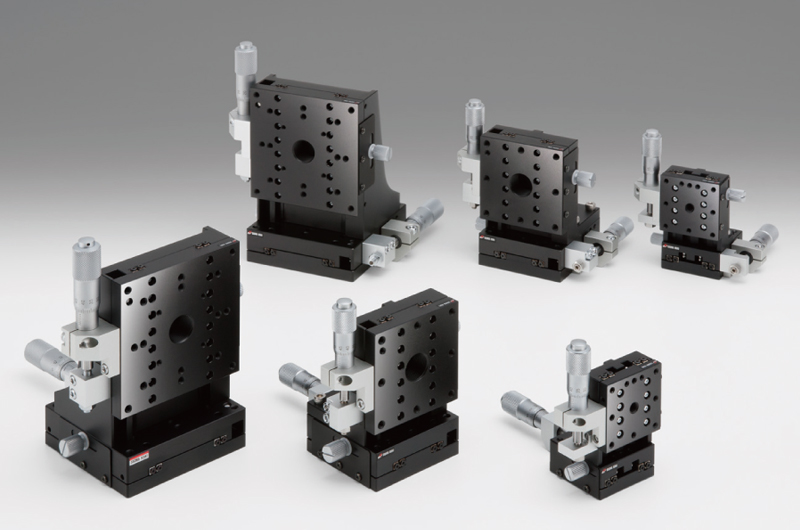

These XZ assemblies incorporate an integrated (X) axis aluminum linear stage and a (Z) axis aluminum stage with an integrated vertical bracket.
Crossed roller guides enable smooth travel.
|
MODEL NUMBER |
TABLE SIZE(mm) |
MOTION RANGE(mm) |
LOAD CAPACITY |
PRICE(￥) |
|
TAM-404CL |
40x40 |
X:±6.5, Z:±6.5 |
49N(5.0kgf) |
57,000 |
|
TAM-404CLUU |
40x40 |
X:±6.5, Z:±6.5 |
49N(5.0kgf) |
57,000 |
|
TAM-404SL |
40x40 |
X:±6.5, Z:±6.5 |
49N(5.0kgf) |
57,000 |
|
TAM-404SLUU |
40x40 |
X:±6.5, Z:±6.5 |
49N(5.0kgf) |
57,000 |
|
TAM-404SRL |
40x40 |
X:±6.5, Z:±6.5 |
49N(5.0kgf) |
57,000 |
|
TAM-404SRLUU |
40x40 |
X:±6.5, Z:±6.5 |
49N(5.0kgf) |
57,000 |
|
TAM-604CL |
60x60 |
X:±6.5, Z:±6.5 |
49N(5.0kgf) |
65,000 |
|
TAM-604SL |
60x60 |
X:±6.5, Z:±6.5 |
49N(5.0kgf) |
65,000 |
|
TAM-604SRL |
60x60 |
X:±6.5, Z:±6.5 |
49N(5.0kgf) |
65,000 |
|
TAM-654CL-M6 |
65x65 |
X:±6.5, Z:±6.5 |
49N(5.0kgf) |
71,000 |
|
TAM-654CLUU |
65x65 |
X:±6.5, Z:±6.5 |
49N(5.0kgf) |
71,000 |
|
TAM-654SL-M6 |
65x65 |
X:±6.5, Z:±6.5 |
49N(5.0kgf) |
71,000 |
|
TAM-654SLUU |
65x65 |
X:±6.5, Z:±6.5 |
49N(5.0kgf) |
71,000 |
|
TAM-654SRL-M6 |
65x65 |
X:±6.5, Z:±6.5 |
49N(5.0kgf) |
71,000 |
|
TAM-654SRLUU |
65x65 |
X:±6.5, Z:±6.5 |
49N(5.0kgf) |
71,000 |
|
TAM-804CL |
80x80 |
X:±7.5, Z:±7.5 |
49N(5.0kgf) |
75,000 |
|
TAM-804CL |
80x80 |
X:±7.5, Z:±7.5 |
49N(5.0kgf) |
75,000 |
