XZ AXIS TRANSLATION STAGES TASB-4 Series
페이지 정보
본문

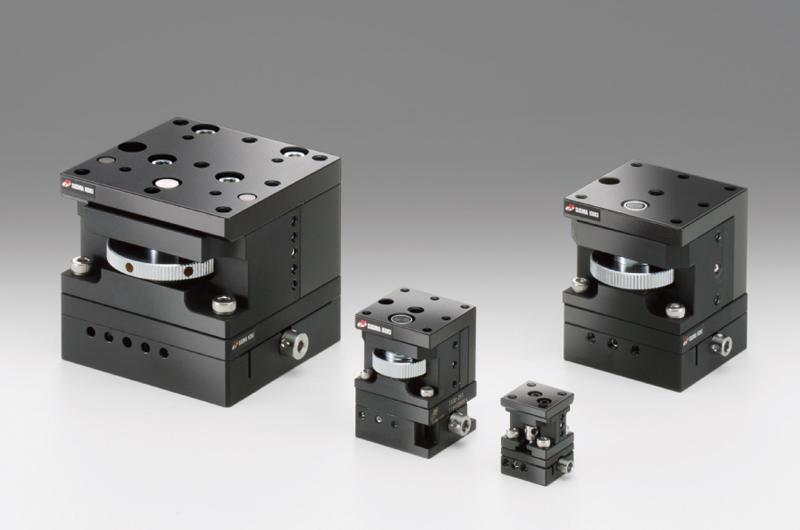

XZ axis translation stages with horizontal top plate.
Space saving design offers compact footprints.
Appropriate for system integration.
◦Ideal for system integration where fine alignment is made, the stage is locked, and the system is sealed or closed.
◦Multiple square footprints available.
◦Minimal protrusions, including the adjustment knob, to fit within tight locations.
◦Lockable with the use of a small locking set screw and wrench.
|
MODEL NUMBER |
TABLE SIZE(mm) |
MOTION RANGE(mm) |
LOAD CAPACITY |
PRICE(￥) |
|
TASB-154 |
15x15 |
X:±2, Z:+2·-0 |
4.9N(0.5kgf) |
20,000 |
|
TASB-254 |
25x25 |
X:±3, Z:+3·-0 |
6.9N(0.7kgf) |
22,000 |
|
TASB-404 |
40x40 |
X:±7, Z:+5·-0 |
29.4N(3.0kgf) |
24,000 |
|
TASB-404UU |
40x40 |
X:±7, Z:+5·-0 |
29.4N(3.0kgf) |
24,000 |
|
TASB-604 |
60x60 |
X:±10, Z:+7·-0 |
98.1N(10.0kgf) |
32,400 |
|
TASB-654-M6 |
65x65 |
X:±12.5, Z:+7·-0 |
98.1N(10.0kgf) |
36,000 |
|
TASB-654UU |
65x65 |
X:±12.5, Z:+7·-0 |
98.1N(10.0kgf) |
36,000 |
