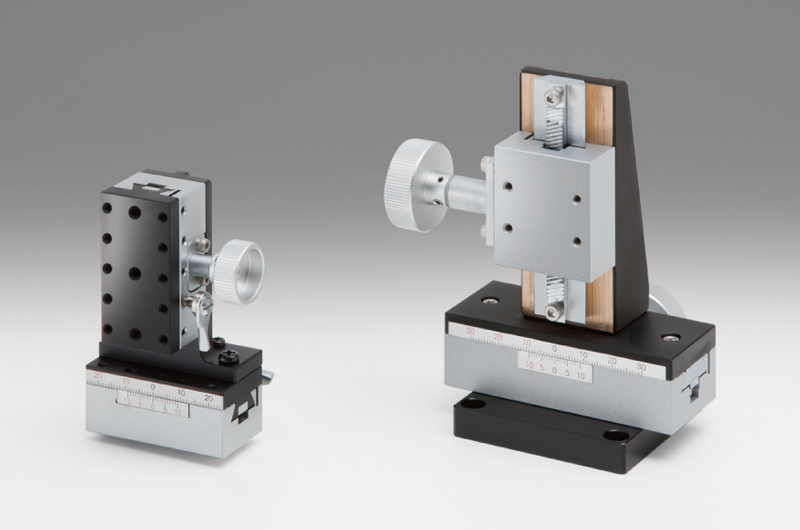

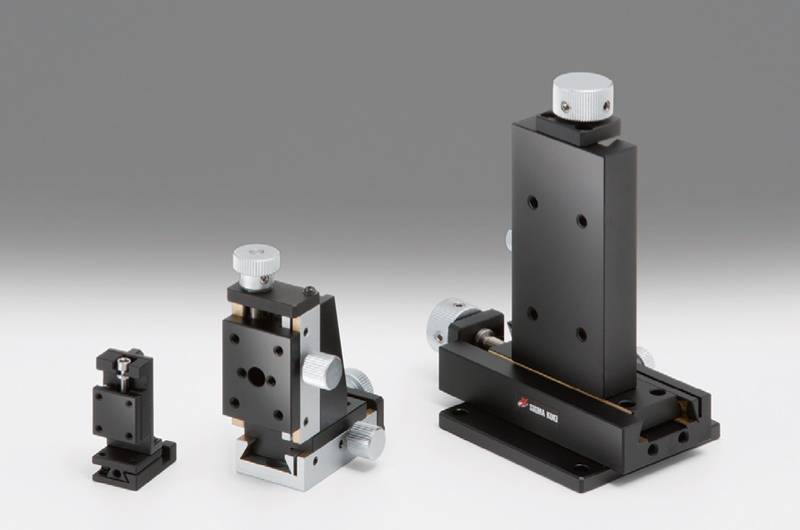

XZ AXIS TRANSLATION STAGES TAS Series
페이지 정보
본문
Leadscrew dovetail translation stages with rectangular form factor, enabling longer travel with fine adjustment.
-Low cost, high stability, and long travel due to form factor. Large adjustment knob provides high sensitivity, (Except 15mm size)
|
MODEL NUMBER |
TABLE SIZE(mm) |
MOTION RANGE(mm) |
LOAD CAPACITY |
PRICE(￥) |
|
TAS-24304L |
24x30 |
X:±4, Z:±4 |
4.9N(0.5kgf) |
24,300 |
|
TAS-20604L |
18x60 |
X:±7.5, Z:±7.5 |
9.8N(1.0kgf) |
27,000 |
|
TAR-25504L |
25x50 |
X:±10, Z:±10 |
9.8N(1.0kgf) |
27,000 |
|
TAR-34804L |
34x40 |
X:±25, Z:+25·-20 |
14.7N(1.5kgf) |
32,400 |
|
TAR-38404L-M6 |
38x40 |
X:±15, Z:+45·-0 |
14.7N(1.5kgf) |
34,000 |
|
TAR-38404LUU |
38x40 |
X:±15, Z:+45·-0 |
14.7N(1.5kgf) |
34,000 |
|
TAR-60554L |
60x60 |
X:+27·-0, Z:+18·-0 |
24.5N(2.5kgf) |
46,800 |
|
TAR-60704L |
60x60 |
X:+37·-0, Z:+33·-1 |
24.5N(2.5kgf) |
50,400 |
