XYZ AXIS TRANSLATION STAGES TSD-5L Series
페이지 정보
본문

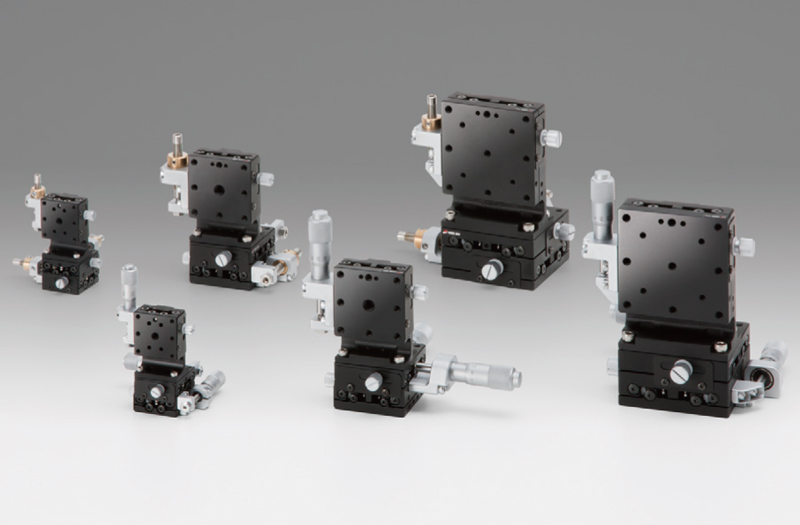

This XYZ assembly incorporates an integrated (XY) axis steel linear stage and a (Z) vertical axis steel stage with a horizontal flat top plate.
There are options for micrometer position and fine pitch screws.
|
MODEL NUMBER |
TABLE SIZE(mm) |
MOTION RANGE(mm) |
LOAD CAPACITY |
PRICE(￥) |
|
TSD-255CL |
25x25 |
XY:±3, Z:±3 |
14.7N(1.5kgf) |
69,000 |
|
TSD-255SL |
25x25 |
XY:±3, Z:±3 |
14.7N(1.5kgf) |
69,000 |
|
TSD-255SRL |
25x25 |
XY:±3, Z:±3 |
14.7N(1.5kgf) |
69,000 |
|
TSD-405CL |
40x40 |
XY:±6.5, Z:±6.5 |
49N(5.0kgf) |
82,000 |
|
TSD-405CLUU |
40x40 |
XY:±6.5, Z:±6.5 |
49N(5.0kgf) |
82,000 |
|
TSD-405SL |
40x40 |
XY:±6.5, Z:±6.5 |
49N(5.0kgf) |
82,000 |
|
TSD-405SLUU |
40x40 |
XY:±6.5, Z:±6.5 |
49N(5.0kgf) |
82,000 |
|
TSD-405SRL |
40x40 |
XY:±6.5, Z:±6.5 |
49N(5.0kgf) |
82,000 |
|
TSD-405SRLUU |
40x40 |
XY:±6.5, Z:±6.5 |
49N(5.0kgf) |
82,000 |
|
TSD-605CL |
60x60 |
XY:±6.5, Z:±6.5 |
49N(5.0kgf) |
93,000 |
|
TSD-605SL |
60x60 |
XY:±6.5, Z:±6.5 |
49N(5.0kgf) |
93,000 |
|
TSD-605SRL |
60x60 |
XY:±6.5, Z:±6.5 |
49N(5.0kgf) |
93,000 |
|
TSD-655CL-M6 |
65x65 |
XY:±6.5, Z:±6.5 |
49N(5.0kgf) |
103,000 |
|
TSD-655CLUU |
65x65 |
XY:±6.5, Z:±6.5 |
49N(5.0kgf) |
103,000 |
|
TSD-655SL-M6 |
65x65 |
XY:±6.5, Z:±6.5 |
49N(5.0kgf) |
103,000 |
|
TSD-655SLUU |
65x65 |
XY:±6.5, Z:±6.5 |
49N(5.0kgf) |
103,000 |
|
TSD-655SRL-M6 |
65x65 |
XY:±6.5, Z:±6.5 |
49N(5.0kgf) |
103,000 |
|
TSD-655SRLUU |
65x65 |
XY:±6.5, Z:±6.5 |
49N(5.0kgf) |
103,000 |
