ROTATION STAGES KSPT Series
페이지 정보
본문

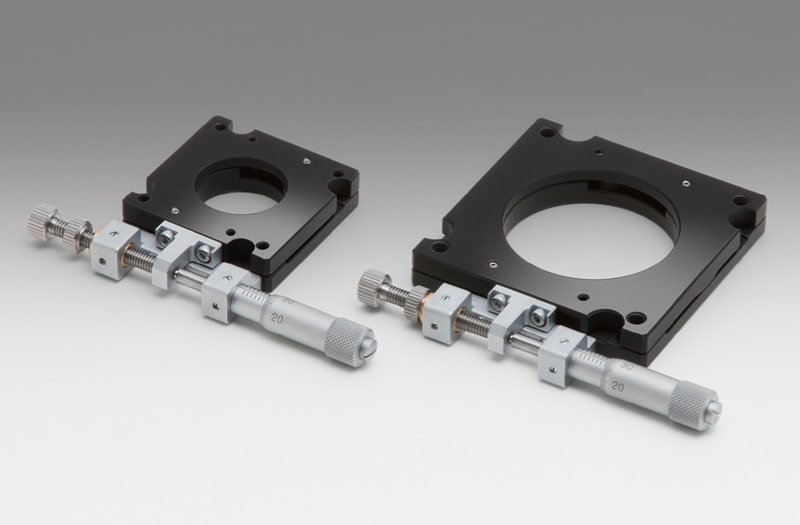

Square footprint of rotation stages with a clear aperture at the center. total stage thickness 10mm.
Can be installed in arbitrary orientations such as vertical or inverted due to superior stiffness inherent to the intergrated bearing way design.
Can be installed in arbitrary orientations such as vertical or inverted due to superior stiffness inherent to the intergrated bearing way design.
◦Ideal for use in systems that require angular adjustment of high loads or that are constrained for space.
|
MODEL NUMBER |
TABLE SIZE(mm) |
MOTION RANGE(°) |
LOAD CAPACITY |
PRICE(￥) |
|
KSPT-406MH |
40x40 |
±10 |
78.4N(8.0kgf) |
22,000 |
|
KSPT-406MRH |
40x40 |
±10 |
78.4N(8.0kgf) |
22,000 |
|
KSPT-406MHFP |
40x40 |
±10 |
78.4N(8.0kgf) |
19,000 |
|
KSPT-406MRHFP |
40x40 |
±10 |
78.4N(8.0kgf) |
19,000 |
|
KSPT-606MH |
60x60 |
±10 |
14.7N(15.0kgf) |
25,000 |
|
KSPT-606MRH |
60x60 |
±10 |
14.7N(15.0kgf) |
25,000 |
|
KSPT-606MHFP |
60x60 |
±10 |
14.7N(15.0kgf) |
22,000 |
|
KSPT-606MRHFP |
60x60 |
±10 |
14.7N(15.0kgf) |
22,000 |
