ROTATION STAGES KSP Series
페이지 정보
본문

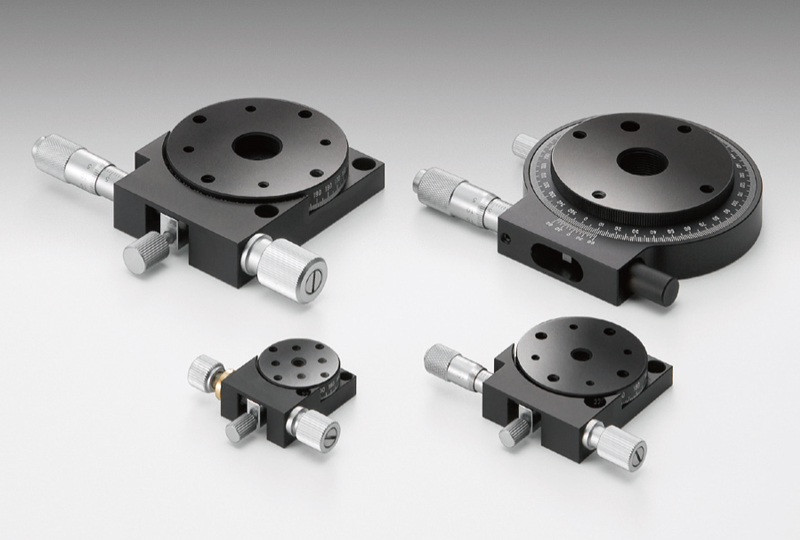

Low profile rotation stages offer coarse rotation adjustment of 360° and fine adjustment (with either a micrometer head or fine-pitch screw).
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
◦The main body of these stages is made of brass for high stiffness and incorporate plain bearings for high performance and small size.
◦The through hole at the center of the stage can be used as a transmission hole.
◦A scale around the circumference provides an indication of the angle.
◦The through hole at the center of the stage can be used as a transmission hole.
◦A scale around the circumference provides an indication of the angle.
|
MODEL NUMBER |
TABLE SIZE(mm) |
MOTION RANGE(°) |
LOAD CAPACITY |
PRICE(￥) |
|
KSP-256 |
Ø25 |
粗:360, 微:±5 |
29.4N(3.0kgf) |
20,000 |
|
KSP-406M |
Ø40 |
粗:360, 微:±5 |
49.0N(5.0kgf) |
22,000 |
|
KSP-406MUU |
Ø40 |
粗:360, 微:±5 |
49.0N(5.0kgf) |
22,000 |
|
KSP-406MR |
Ø40 |
粗:360, 微:±5 |
49.0N(5.0kgf) |
22,000 |
|
KSP-606M |
Ø60 |
粗:360, 微:±5 |
68.6N(7.0kgf) |
28,000 |
|
KSP-606MR |
Ø60 |
粗:360, 微:±5 |
68.6N(7.0kgf) |
28,000 |
|
KSP-656M-M6 |
Ø65 |
粗:360, 微:±5 |
68.6N(7.0kgf) |
30,000 |
|
KSP-656MUU |
Ø65 |
粗:360, 微:±5 |
68.6N(7.0kgf) |
30,000 |
|
KSP-786MUU |
Ø60 |
粗:360, 微:±5 |
49N(5.0kgf) |
25,000 |
