ROTATION STAGES KSPA Series
페이지 정보
본문

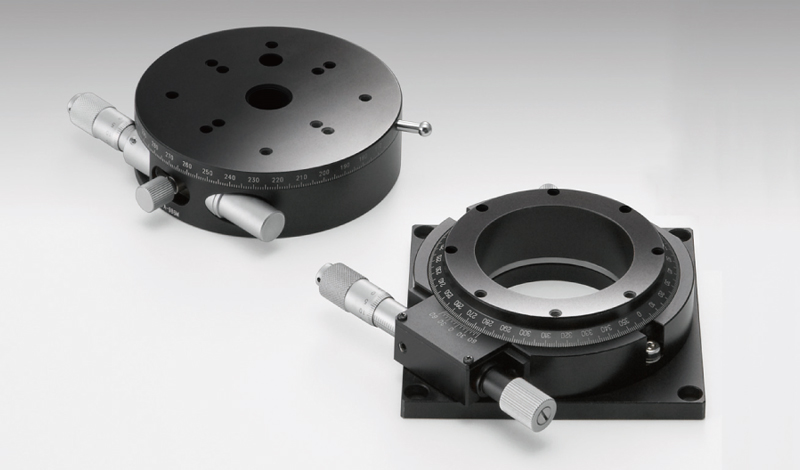

Low profile rotation stages offer coarse rotation adjustment of 360° and fine adjustment (with either a micrometer head or fine-pitch screw).
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
◦Light-weight and high precision design.
◦Vernier scales for reading angular position.
◦Center hole extends completely through stage.
◦Available with micrometers or fine pitch screws.
◦Vernier scales for reading angular position.
◦Center hole extends completely through stage.
◦Available with micrometers or fine pitch screws.
|
MODEL NUMBER |
TABLE SIZE(mm) |
MOTION RANGE(°) |
LOAD CAPACITY |
PRICE(￥) |
|
KSPA-806M |
Ø80 |
粗:360, 微:±5 |
58.8N(6.0kgf) |
30,000 |
|
KSPA-906M |
Ø90 |
粗:360, 微:±5 |
68.6N(7.0kgf) |
35,000 |
|
KSPA-806MH |
Ø57 |
粗:360, 微:±5 |
49N(5.0kgf) |
34,000 |
|
KSPA-1006M |
Ø76 |
粗:360, 微:±5 |
68.6N(7.0kgf) |
40,000 |
