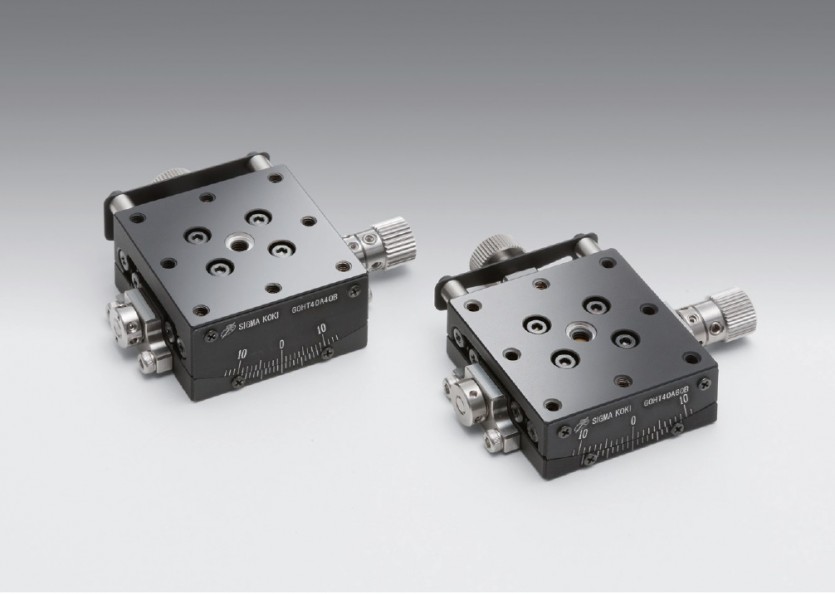

GONIOMETER STAGES GOHT-40A Series

페이지 정보

profile_image
작성자 최고관리자
댓글 0건 조회 121회 작성일 22-08-31 09:55

본문






High precision goniometers with integrated bearing ways for superior stiffness, accuracy and durability.
 ◦Centering accuracy 10x better than typical dovetail goniometers.
◦Designed for use in a variety of orientations. Not limited to horizontal mounting.
◦Integral-guide structure offers high performance of rotation center displacement φ0.007mm.
◦Disc clamp improves the stability of clamping.
◦Designed for use with precision alignment pins for ease of assembly.

MODEL NUMBER

TABLE SIZE(mm)

Rotation Center Hight

(mm)

MOTION RANGE(°)

LOAD CAPACITY

 PRICE(￥)

GOHT-40A20B

40x40

20±0.1

±20

58.8N(6.0kgf)

80,000

GOHT-40A20BUU

40x40

20±0.1

±20

58.8N(6.0kgf)

80,000

GOHT-40A20BR

40x40

20±0.1

±20

58.8N(6.0kgf)

80,000

GOHT-40A20BRUU

40x40

20±0.1

±20

58.8N(6.0kgf)

80,000

GOHT-40A40B

40x40

40±0.1

±10

58.8N(6.0kgf)

80,000

GOHT-40A40BUU

40x40

40±0.1

±10

58.8N(6.0kgf)

80,000

GOHT-40A40BR

40x40

40±0.1

±10

58.8N(6.0kgf)

80,000

GOHT-40A40BRUU

40x40

40±0.1

±10

58.8N(6.0kgf)

80,000

GOHT-40A60B

40x40

60±0.1

±8

58.8N(6.0kgf)

80,000

GOHT-40A60BUU

40x40

60±0.1

±8

58.8N(6.0kgf)

80,000

GOHT-40A60BR

40x40

60±0.1

±8

58.8N(6.0kgf)

80,000

GOHT-40A60BRUU

40x40

60±0.1

±8

58.8N(6.0kgf)

80,000

GOHT-40A75B

40x40

75±0.1

±5

58.8N(6.0kgf)

80,000

GOHT-40A75BUU

40x40

75±0.1

±5

58.8N(6.0kgf)

80,000

GOHT-40A75BR

40x40

75±0.1

±5

58.8N(6.0kgf)

80,000

GOHT-40A75BRUU

40x40

75±0.1

±5

58.8N(6.0kgf)

80,000

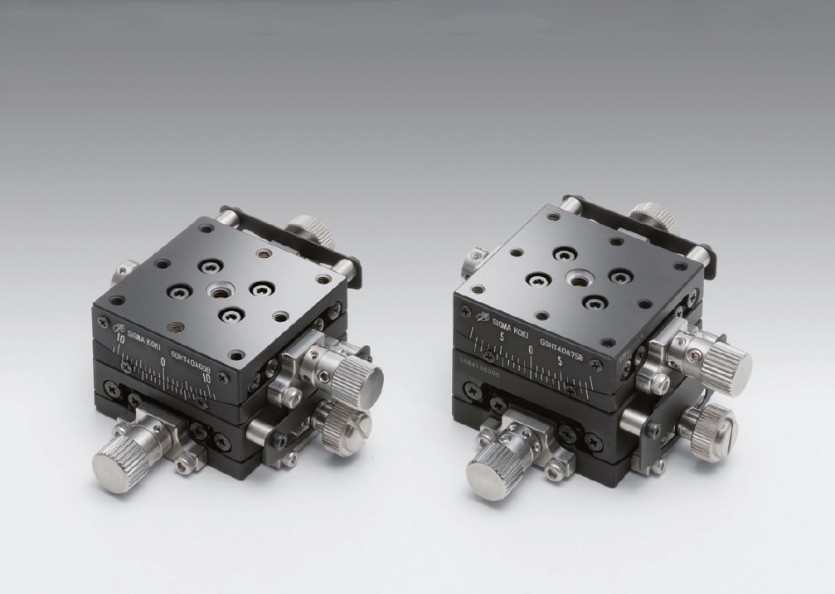

GOHT-40B20B

40x40

20±0.2

상:±20, 하:±10

58.8N(6.0kgf)

160,000

GOHT-40B20BUU

40x40

20±0.2

상:±20, 하:±10

58.8N(6.0kgf)

160,000

GOHT-40B20BR

40x40

20±0.2

상:±20, 하:±10

58.8N(6.0kgf)

160,000

GOHT-40B20BRUU

40x40

20±0.2

상:±20, 하:±10

58.8N(6.0kgf)

160,000

GOHT-40B40B

40x40

40±0.2

상:±10, 하:±8

58.8N(6.0kgf)

160,000

GOHT-40B40BUU

40x40

40±0.2

상:±10, 하:±8

58.8N(6.0kgf)

160,000

GOHT-40B40BR

40x40

40±0.2

상:±10, 하:±8

58.8N(6.0kgf)

160,000

GOHT-40B40BRUU

40x40

40±0.2

상:±10, 하:±8

58.8N(6.0kgf)

160,000

GOHT-40B60B

40x40

60±0.2

상:±8, 하:±6

58.8N(6.0kgf)

160,000

GOHT-40B60BUU

40x40

60±0.2

상:±8, 하:±6

58.8N(6.0kgf)

160,000

GOHT-40B60BR

40x40

60±0.2

상:±8, 하:±6

58.8N(6.0kgf)

160,000

GOHT-40B60BRUU

40x40

60±0.2

상:±8, 하:±6

58.8N(6.0kgf)

160,000
