GONIOMETER STAGES GOHT-60A Series

페이지 정보

profile_image
작성자 최고관리자
댓글 0건 조회 111회 작성일 22-08-31 09:57

본문








High precision goniometers with integrated bearing ways for superior stiffness, accuracy and durability.
 ◦Centering accuracy 10x better than typical dovetail goniometers.
◦Designed for use in a variety of orientations. Not limited to horizontal mounting.
◦Integral-guide structure offers high performance of rotation center displacement φ0.007mm.
◦Disc clamp improves the stability of clamping.
◦Designed for use with precision alignment pins for ease of assembly.

MODEL NUMBER

TABLE SIZE(mm)

Rotation Center Hight

(mm)

MOTION RANGE(°)

LOAD CAPACITY

 PRICE(￥)

GOHT-60A35B

60x60

35±0.1

±20

98N(10.0kgf)

80,000

GOHT-60A35BR

60x60

35±0.1

±20

98N(10.0kgf)

80,000

GOHT-60A60B

60x60

60±0.1

±15

98N(10.0kgf)

80,000

GOHT-60A60BR

60x60

60±0.1

±15

98N(10.0kgf)

80,000

GOHT-60A85B

60x60

85±0.1

±10

98N(10.0kgf)

80,000

GOHT-60A85BR

60x60

85±0.1

±10

98N(10.0kgf)

80,000

GOHT-60A105B

60x60

105±0.1

±8

98N(10.0kgf)

80,000

GOHT-60A105BR

60x60

105±0.1

±8

98N(10.0kgf)

80,000

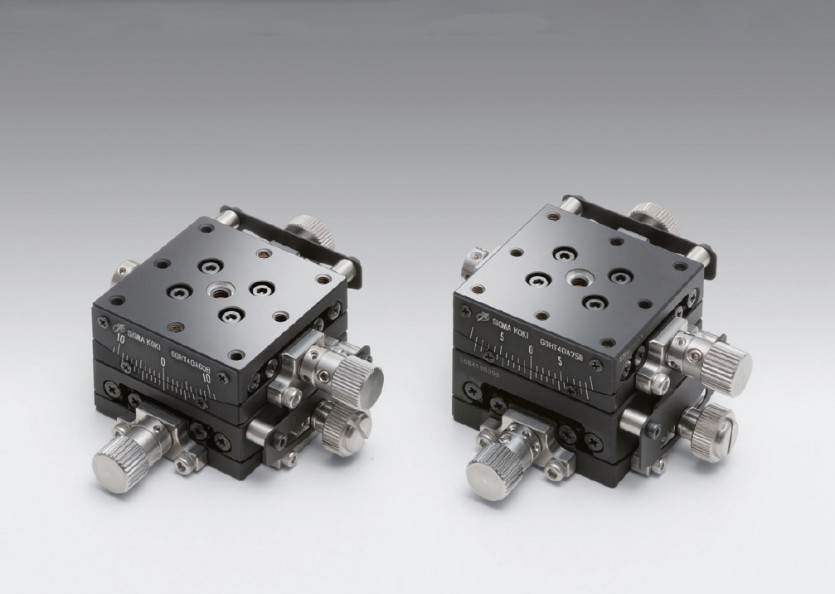

GOHT-60B35B

60x60

35±0.2

상:±20, 하:±15

98N(10.0kgf)

160,000

GOHT-60B35BR

60x60

35±0.2

상:±20, 하:±15

98N(10.0kgf)

160,000

GOHT-60B60B

60x60

60±0.2

상:±15, 하:±10

98N(10.0kgf)

160,000

GOHT-60B60BR

60x60

60±0.2

상:±15, 하:±10

98N(10.0kgf)

160,000

GOHT-60B85B

60x60

85±0.2

상:±10, 하:±8

98N(10.0kgf)

160,000

GOHT-60B85BR

60x60

85±0.2

상:±10, 하:±8

98N(10.0kgf)

160,000
