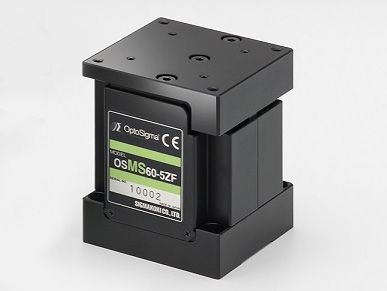

STEPPING MOTOR STAGES OSMS-ZF Series
페이지 정보
본문
Z axis stepping motor driven stages for measurement and inspection, offering high stiffness and high precision.
The mounting platform is oriented parallel to the base and is perpendicular to the direction of travel.
The mounting platform is oriented parallel to the base and is perpendicular to the direction of travel.
◦Unconventional design incorporates a horizontal platform Z axis stage which mounts the motor in the main body to minimize footprint.
◦Minimized protrusions make these stages ideal for system assembly.
◦Minimized protrusions make these stages ideal for system assembly.
|
MODEL NUMBER |
Resolution(um/pulse) |
MOTION RANGE(mm) |
LOAD CAPACITY |
PRICE(￥) |
|
OSMS40-5ZF |
Full:1, Half:0.5 |
5 |
19.6N(2.0kgf) |
93,000 |
|
OSMS60-5ZF |
Full:2, Half:1 |
5 |
39.2N(4.0kgf) |
118,000 |
|
OSMS60-10ZF |
Full:2, Half:1 |
10 |
39.2N(4.0kgf) |
128,000 |
|
OSMS80-20ZF |
Full:0.2, Half:0.1 |
20 |
147N(15.0kgf) |
158,000 |
