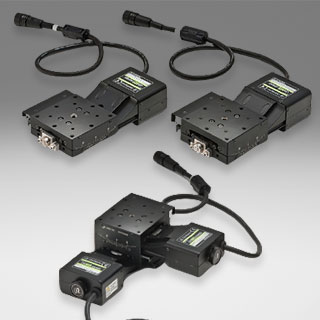

STEPPING MOTOR STAGES OSMS-40A/60A Gonio Series
페이지 정보
본문
High precision motorized goniometers with integrated bearing ways for superior stiffness, accuracy and durability.
Their smooth movement is ideal for frequent angle adjustment.
Their smooth movement is ideal for frequent angle adjustment.
◦Extended Contact bearing ways are machined directly into the main body reduce the number of parts and assembly time, making these very durable and cost effective.
◦Attachment pins (accessories) are ideal for positioning when assembling into αβ axis or mounting on various instruments or devices.
◦Attachment pins (accessories) are ideal for positioning when assembling into αβ axis or mounting on various instruments or devices.
|
MODEL NUMBER |
Resolution(°/pulse) |
MOTION RANGE |
LOAD CAPACITY |
PRICE(￥) |
|
OSMS-40A60 |
Full:0.00217, Half:0.00108 |
±5° |
19.6N(2.0kgf) |
142,000 |
|
OSMS-40A60R |
Full:0.00217, Half:0.00108 |
±5° |
19.6N(2.0kgf) |
142,000 |
|
OSMS-40A75 |
Full:0.00177, Half:0.00089 |
±4° |
19.6N(2.0kgf) |
142,000 |
|
OSMS-40A75R |
Full:0.00177, Half:0.00089 |
±4° |
19.6N(2.0kgf) |
142,000 |
|
OSMS-60A60 |
Full:0.00293, Half:0.00146 |
±14° |
29.4N(3.0kgf) |
155,000 |
|
OSMS-60A60R |
Full:0.00293, Half:0.00146 |
±14° |
29.4N(3.0kgf) |
155,000 |
|
OSMS-60A85 |
Full:0.00229, Half:0.00115 |
±9° |
29.4N(3.0kgf) |
155,000 |
|
OSMS-60A85R |
Full:0.00229, Half:0.00115 |
±9° |
29.4N(3.0kgf) |
155,000 |
|
OSMS-60A105 |
Full:0.00198, Half:0.00095 |
±7° |
29.4N(3.0kgf) |
155,000 |
|
OSMS-60A105 |
Full:0.00198, Half:0.00095 |
±7° |
29.4N(3.0kgf) |
155,000 |
