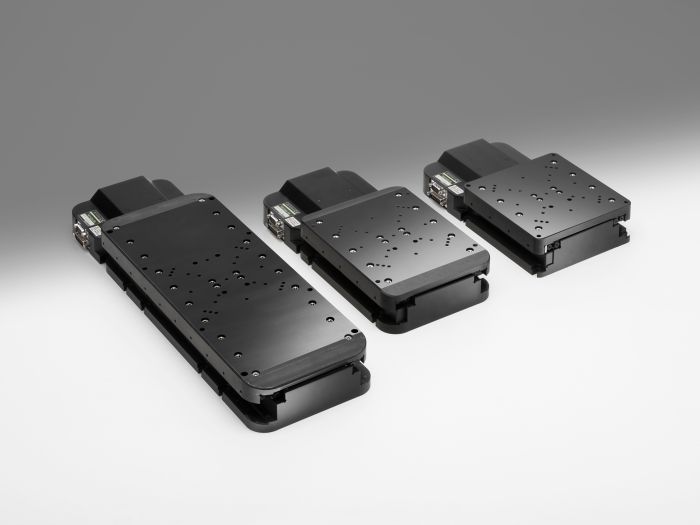

FEEDBACK STAGE SYSTEMS KST(GS)-X Series
페이지 정보
본문
Full closed loop control system that controls a motorized stage with built-in high resolution compact linear encoder using a special controller.
◦Linear encoder signal feedback and micro-step drive can minimize lead error, which is inherent to feed screw mechanism.
◦Small glass scale of linear expansion coefficient enabled a highly reliable positioning system stable against fluctuations in ambient environment.
◦Ideal for use in positioning that requires precision in submicron units, and prolonged driving that is affected by reproducibility by temperature drift.
◦Small glass scale of linear expansion coefficient enabled a highly reliable positioning system stable against fluctuations in ambient environment.
◦Ideal for use in positioning that requires precision in submicron units, and prolonged driving that is affected by reproducibility by temperature drift.
|
MODEL NUMBER |
Resolution(um/pulse) |
MOTION RANGE(mm) |
LOAD CAPACITY |
PRICE(￥) |
|
KST(GS)-50X |
Full:2, Half:1 |
50 |
392N(40.0kgf) |
500,000 |
|
KST(GS)-100X |
Full:2, Half:1 |
100 |
392N(40.0kgf) |
570,000 |
|
KST(GS)-200X |
Full:4, Half:2 |
200 |
392N(40.0kgf) |
750,000 |
