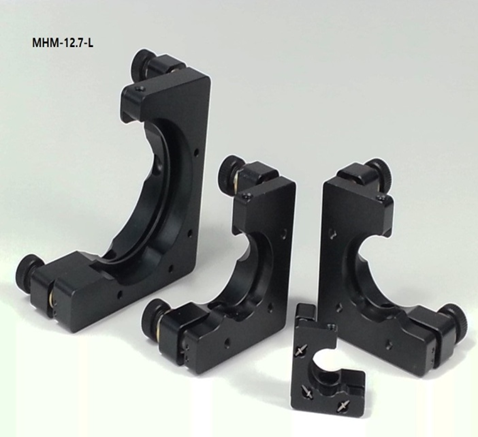

High precision kinematic mirror mounts - MHM-12.7-L/R
페이지 정보
본문
|
Model |
Price 〔￥〕 |
Compatible Optics |
Through hole φ [mm] |
Number of Adjustment Axis |
Adjustment Range |
Resolution |
Weight [kg] |
|||
|
Diameter φ[mm] |
Thickness [mm] |
Tilt [ ° ] |
rotation[ ° ] |
Tilt [°/rotation] |
Rotation [°/rotation] |
|||||
|

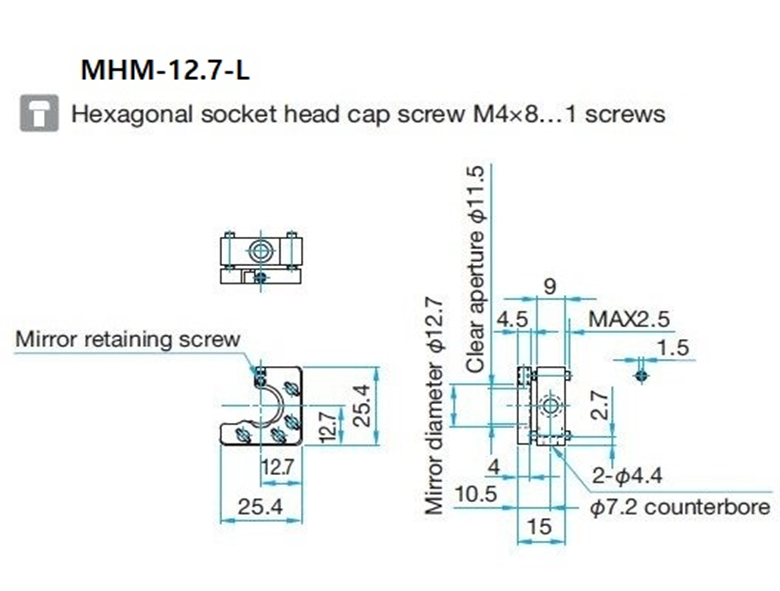

MHM-12.7-L |
10,000 |
12.7 |
2.5 – 4 |
11.5 |
2 |
±3 |
±3 |
0.3 |
0.3 |
0.011 |
|
MHM-12.7-R |
10,000 |
12.7 |
2.5 – 4 |
11.5 |
2 |
±3 |
±3 |
0.3 |
0.3 |
0.011 |
|
MHM-25.4-L |
11,000 |
25.4 |
3 – 5 |
22.4 |
2 |
±3 |
±3 |
0.15 |
0.15 |
0.064 |
|
MHM-25.4-R |
11,000 |
25.4 |
3 – 5 |
22.4 |
2 |
±3 |
±3 |
0.15 |
0.15 |
0.064 |
|
MHM-30-L |
11,000 |
30 |
3 – 5 |
27 |
2 |
±3 |
±3 |
0.15 |
0.15 |
0.064 |
|
MHM-30-R |
11,000 |
30 |
3 – 5 |
27 |
2 |
±3 |
±3 |
0.15 |
0.15 |
0.064 |
|
MHM-50.8-L |
15,000 |
50, 50.8 |
5 – 9 |
47 |
2 |
±3 |
±3 |
0.1 |
0.1 |
0.104 |
|
MHM-50.8-R |
15,000 |
50, 50.8 |
5 – 9 |
47 |
2 |
±3 |
±3 |
0.1 |
0.1 |
0.104 |
