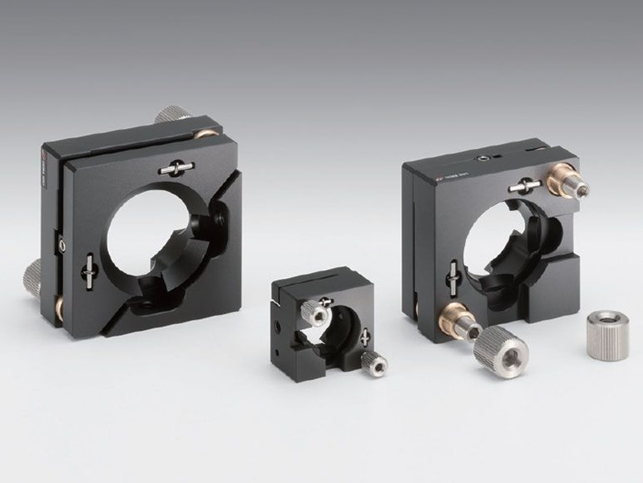

High precision kinematic mirror mounts - MHI-XX.X
페이지 정보
본문
|
Model |
Options specified* |
Price 〔￥〕 |
Compatible Optics |
Clear aperture φA [mm] |
45 incident beam diameter |
Adjustment Range |
Resolution |
Weight [kg] |
||||
|
Diameter φA[mm] |
Thickness [mm] |
transmission φ[mm] |
Reflection φ[mm] |
Tilt [ ° ] |
rotation[ ° ] |
Tilt [°/rotation] |
Rotation [°/rotation] |
|||||
|
MHI-12.7 |
- |
12,000 |
12.7 |
2 - 9 |
10.7 |
5 |
6.8 |
±3 |
±3 |
Approx. 0.74 |
Approx. 0.74 |
0.05 |
|
MHI-12.7 |
UU |
12,000 |
25, 25.4 |
3 - 10 |
23 |
13 |
15.5 |
±1.5 |
±1.5 |
Approx. 0.40 |
Approx. 0.40 |
0.12 |
|
MHI-12.7 |
UU |
12,000 |
30 |
3 - 10 |
27 |
15 |
18.3 |
±1.5 |
±1.5 |
Approx. 0.35 |
Approx. 0.35 |
0.13 |
