psi

Model

Price

〔￥〕

Compatible  Optics

45 incident beam diameter

Optical axis height

[mm]

Adjustment Range

Resolution

Weight

[kg]

Diameter

φA[mm]

Thickness

[mm]

transmission

φ[mm]

Reflection

φ[mm]

Tilt [ ° ]

rotation[ ° ]

Tilt

[°/rotation]

Rotation

[°/rotation]

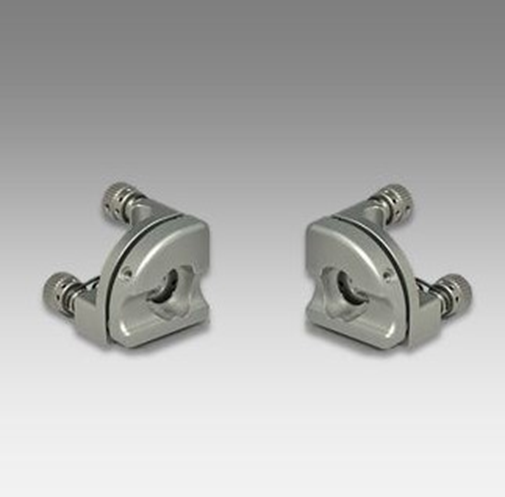

MHO-12.7R

50,000

12.7

3 - 6

6

7.5

12.7

±3

±3

Approx. 0.29

Approx. 0.29

0.08

MHO-12.7L

50,000

12.7

3 - 6

6

7.5

12.7

±3

±3

Approx. 0.295

Approx. 0.29

0.08

MHO-25.4R

50,000

25.4

3 - 6

10

16.5

25.4

±3

±3

Approx. 0.29

Approx. 0.29

0.15

MHO-25.4L

50,000

25.4

3 - 6

10

16.5

25.4

±3

±3

Approx. 0.29

Approx. 0.29

0.15

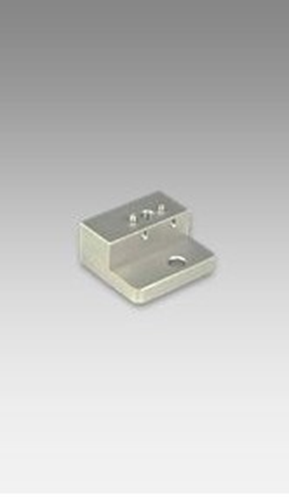

MHO-ADR

10,000

Adapter to lift up to 25.4mm in height, use for MHO-12.7R

0.05

MHO-ADL

10,000

Adapter to lift up to 25.4mm in height, use for MHO-12.7L

0.05

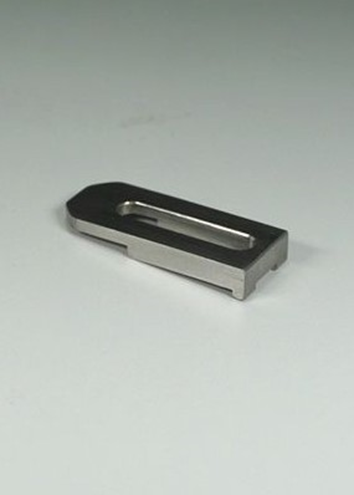

MHO-CL

4,000

Clamp for securing to the surface of the M6 tab, thickness 4~5 mm

-

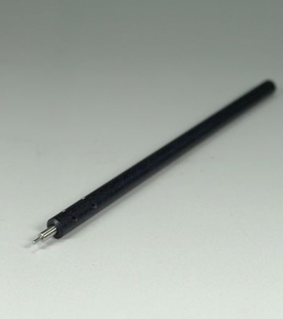

MHO-ST

5,000

Sticks for adjusting adjustment screws, φ1.2 mm(front)

0.15
