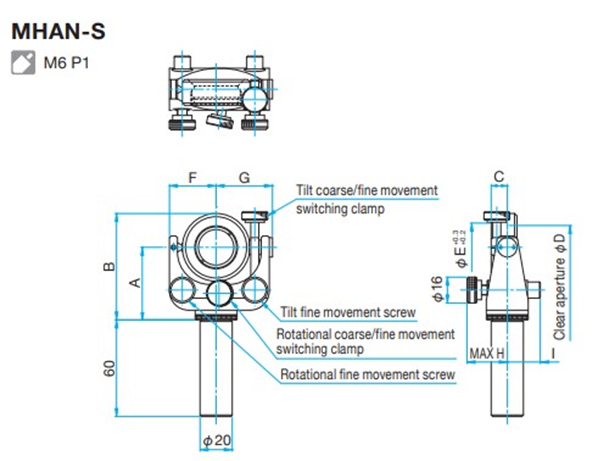

Gimbal Mirror Holders - MHAN-S/MHA/MHAN-DM - Drawing
페이지 정보
본문
|
Model |
A [mm] |
B [mm] |
C [mm] |
Φ D [mm] |
Φ E [mm] |
G [mm] |
F+G [mm] |
Max H [mm] |
I [mm] |
|
MHAN-20S |
40 |
56 |
10 |
17 |
20 |
30 |
54 |
26.5 |
20.5 |
|
MHAN-25.4S |
45 |
66 |
10 |
22 |
25.4 |
35 |
64 |
27 |
20.5 |
|
MHAN-30S |
45 |
66 |
10 |
27 |
30 |
35 |
64 |
27 |
20.5 |
|
MHAN-40S |
52.5 |
79.5 |
12 |
37 |
40 |
41 |
76 |
27.5 |
20.5 |
|
MHAN-50S |
60 |
92 |
15 |
46 |
50 |
46 |
86 |
29 |
20.5 |
|
MHAN-50.8S |
60 |
92 |
15 |
47 |
50.8 |
46 |
86 |
29 |
20.5 |
|
MHAN-60S |
65 |
102 |
15 |
56 |
60 |
51 |
96 |
28.5 |
20.5 |
|
MHA-80S |
89 |
137 |
20 |
75 |
80 |
72 |
133 |
48 |
42.5 |
|
MHA-100SA |
115 |
177 |
21 |
95 |
100 |
101 |
184 |
48 |
45 |
|
MHA-130SA |
128 |
205 |
24 |
124 |
130 |
116 |
214 |
48 |
45 |
|
MHA-150S |
140 |
117 |
26 |
144 |
150 |
126 |
234 |
48 |
45 |
