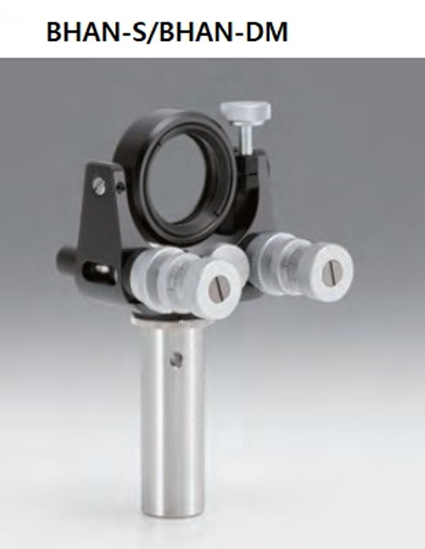

Gimbal Beamsplitter Holders - BHAN-S/BHAN-DM
페이지 정보
본문
|
Model |
Options specified* |
Price 〔￥〕 |
Compatible optics |
Fine Adjustment Range |
Fine Adjustment Resolution |
Ultra Fine Adjustment Resolution |
Ultra Fine Adjustment Indicator Conversion |
Weight [kg] |
|||||
|
Diameter φ[mm] |
Thickness [mm] |
Tilt [ ° ] |
Rotation [ ° ] |
Tilt [°/rotation] |
Rotation [°/rotation] |
Tilt [°/rotation] |
Rotation [°/rotation] |
Tilt [°/DIV] |
Rotation [°/DIV] |
||||
|
BHAN-30S |
UU |
27,000 |
30 |
3 – 5 |
±4 |
±4 |
about 0.54 |
about 0.68 |
- |
- |
- |
- |
0.40 |
|

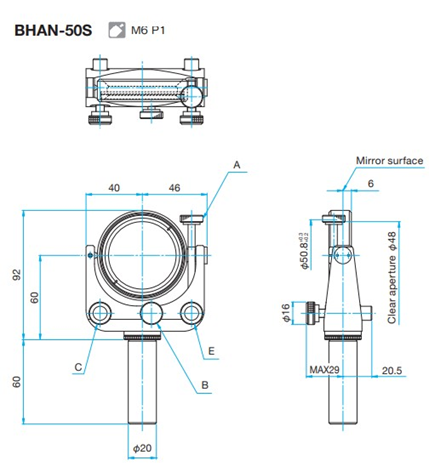

BHAN-50S |
UU |
31,500 |
50, 50.8 |
5 – 8 |
±4 |
±4 |
About 0.31 |
About 0.48 |
- |
- |
- |
- |
0.50 |
|
BHAN-30M |
N/EE/UU |
27,000 |
30 |
3 – 5 |
±4 |
±4 |
about 0.54 |
about 0.68 |
- |
- |
- |
- |
0.40 |
|
BHAN-50M |
EE/UU |
31,500 |
50, 50.8 |
5 – 8 |
±4 |
±4 |
About 0.31 |
About 0.48 |
- |
- |
- |
- |
0.50 |
|
BHAN-30DM |
N/UU |
45,000 |
30 |
3 – 5 |
±4 |
±4 |
about 1.08 |
about 1.35 |
about 0.11 |
about 0.14 |
about 0.002 |
about 0.002 |
0.45 |
|

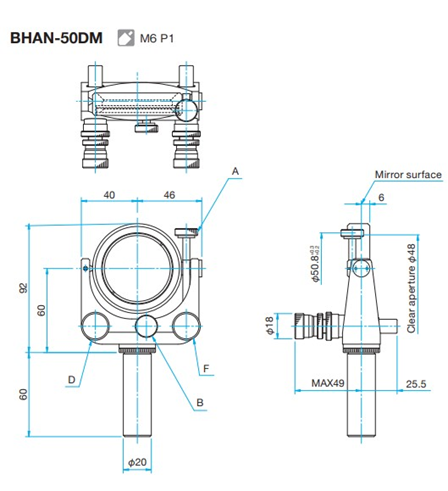

BHAN-50DM |
UU |
49,500 |
50, 50.8 |
5 – 8 |
±3 |
±4 |
About 0.71 |
About 0.95 |
about 0.07 |
about 0.10 |
about 0.001 |
about 0.002 |
0.55 |
