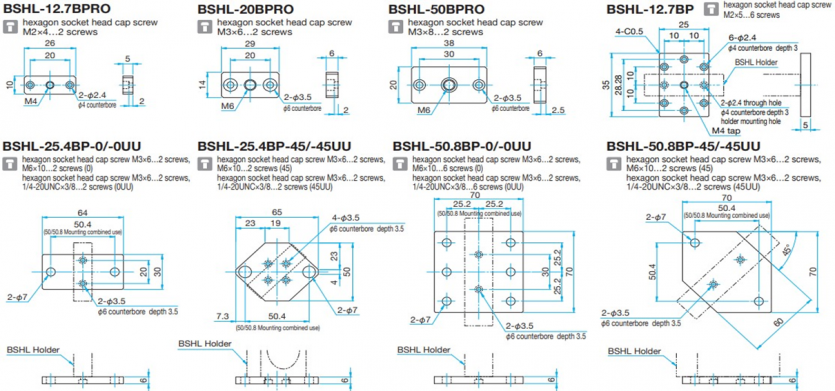

Base plate for Vertical Control Gimbal Beamsplitter Holders
페이지 정보
본문
|
Model |
Type |
Compatible Holders |
Weight [kg] |
|
|
Metric |
Inch |
|||
|
BSHL-12.7BPRO |
- |
M4-Rod |
BSHL-12.7, BSHL-15 |
0.01 |
|
BSHL-20BPRO |
- |
M4-Rod |
BSHL-20, BSHL-25.4, BSHL-30 |
0.01 |
|
BSHL-50BPRO |
- |
M4-Rod |
BSHL-50, BSHL-50.8 |
0.02 |
|
BSHL-12.7BP |
- |
Combined use 0° and 45° Incidence |
BSHL-12.7, BSHL-15 |
0.01 |
|
BSHL-25.4BP-0 |
BSHL-25.4BP-0UU |
0° Incidence |
BSHL-20, BSHL-25.4, BSHL-30 |
0.03 |
|
BSHL-25.4BP-45 |
BSHL-25.4BP-45UU |
45° Incidence |
BSHL-20, BSHL-25.4, BSHL-30 |
0.03 |
|
BSHL-50.8BP-0 |
BSHL-50.8BP-0UU |
0° Incidence |
BSHL-50, BSHL-50.8 |
0.08 |
|
BSHL-50.8BP-45 |
BSHL-50.8BP-45UU |
45° Incidence |
BSHL-50, BSHL-50.8 |
0.06 |
