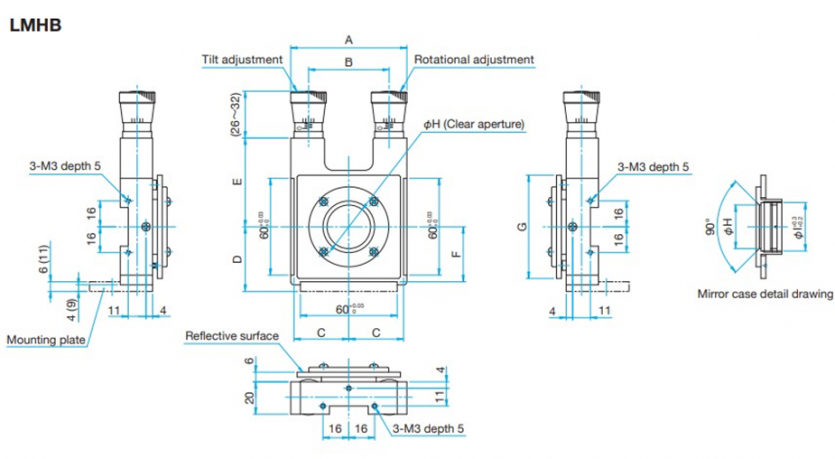

Topmike Vertical Control Mirror Holders - Drawings - LMHB
페이지 정보
본문
|
Model |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
φH (mm) |
φI (mm) |
|
LMHB-25.4M |
72 |
50 |
34 |
40 |
55 |
34 |
64 |
22 |
25.4 |
|
LMHB-30M |
72 |
50 |
24 |
40 |
55 |
34 |
64 |
27 |
30 |
|
LMHB-50M |
102 |
80 |
49 |
55 |
69 |
49 |
94 |
47 |
50 |
|
LMHB-50.8M |
102 |
80 |
49 |
55 |
69 |
49 |
94 |
47 |
50.8 |
|
LMHB-60M |
102 |
80 |
49 |
55 |
69 |
49 |
94 |
57 |
60 |
|
Model |
Price 〔￥〕 |
Compatible Optics |
Adjustment Range |
Resolution |
Weight [kg] |
|||
|
Diameter φA[mm] |
Thickness [mm] |
Tilt [°] |
Rotation [°] |
Tilt [°/rotation] |
Rotation [°/rotation] |
|||
|
LMHB-25.4M |
33,000 |
25.4 |
3 - 9 |
±2.8 |
±2.8 |
Approx. 0.6 |
Approx. 0.6 |
0.44 |
|
LMHB-30M |
33,000 |
30 |
3 - 9 |
±2.8 |
±2.8 |
Approx. 0.6 |
Approx. 0.6 |
0.44 |
|
LMHB-50M |
36,000 |
50 |
2 - 16 |
±1.8 |
±1.8 |
Approx. 0.4 |
Approx. 0.4 |
0.75 |
|
LMHB-50.8M |
36,000 |
50.8 |
2 - 16 |
±1.8 |
±1.8 |
Approx. 0.4 |
Approx. 0.4 |
0.75 |
|
LMHB-60M |
40,000 |
60 |
4 - 17 |
±1.8 |
±1.8 |
Approx. 0.4 |
Approx. 0.4 |
0.75 |
