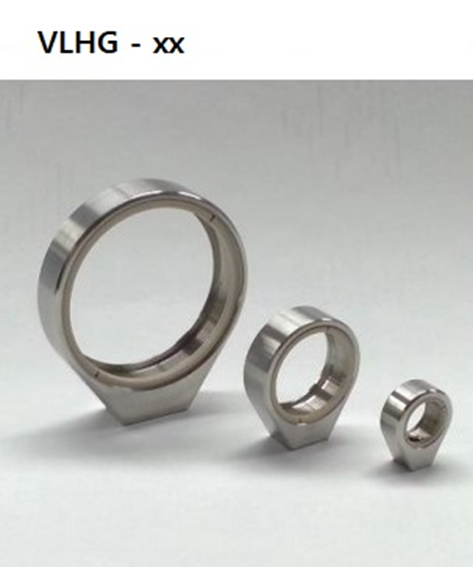

Vacuum lens holders - VLHG
페이지 정보
본문
|
Model |
Price 〔￥〕 |
Compatible Optics |
Clear aperture φ[mm] |
Screw Diameter and Pitch |
Optical Axis Height [㎜] |
Weight [kg] |
|
|
Diameter φA[mm] |
Thickness [mm] |
||||||
|
VLHG -12.7 |
15,000 |
12.7 |
2 – 5.4 |
11.5 |
M13.55 P0.75 |
12.7 |
0.01 |
|
VLHG - 25.4 |
19,000 |
25.4 |
2 – 7 |
23 |
M26.25 P0.75 |
20 |
0.03 |
|
VLHG – 50.8 |
33,000 |
50.8 |
2 – 9 |
47 |
M51.65 P0.75 |
35 |
0.065 |
