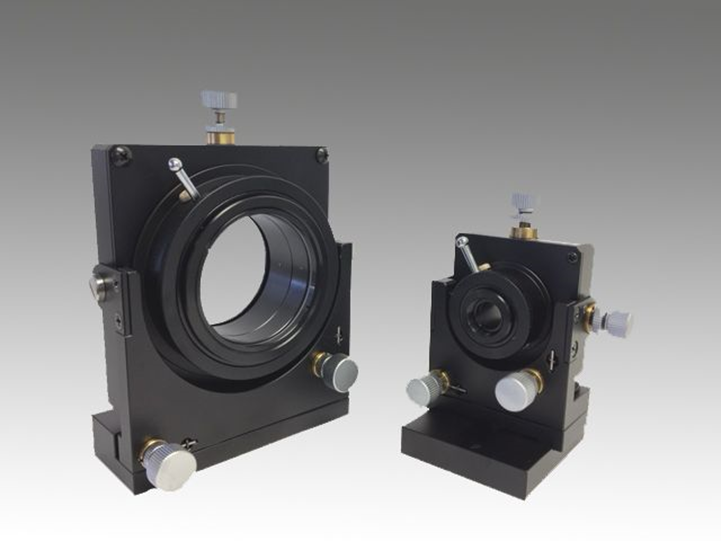

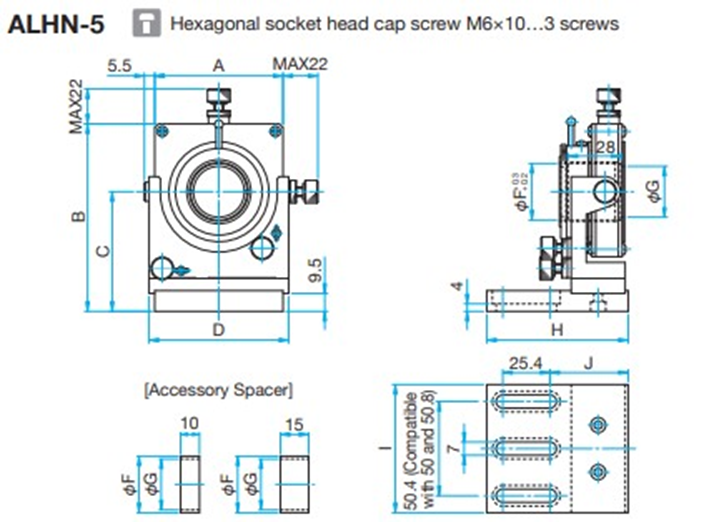

5 Axis lens holders (plate type) - Drawing
페이지 정보
본문
|
Model |
A [mm] |
B [mm] |
C [mm] |
D [mm] |
Φ F [mm] |
φG [mm] |
H [mm] |
I [mm] |
J [mm] |
|
ALHN-12.7-5 |
50 |
71 |
45 |
56 |
12.7 |
10 |
- |
- |
- |
|
ALHN-25-5 |
68 |
99.5 |
63.5 |
74 |
25 |
22 |
75 |
68 |
41.3 |
|
ALHN-25.4-5 |
68 |
99.5 |
63.5 |
74 |
25.4 |
22 |
75 |
68 |
41.3 |
|
ALHN-30-5 |
68 |
99.5 |
63.5 |
74 |
30 |
27 |
75 |
68 |
41.3 |
|
ALHN-50-5 |
88 |
122.2 |
76.2 |
94 |
50 |
46 |
95 |
75 |
59.8 |
|
ALHN-50.8-5 |
88 |
122.2 |
76.2 |
94 |
50.8 |
46 |
95 |
75 |
59.8 |
