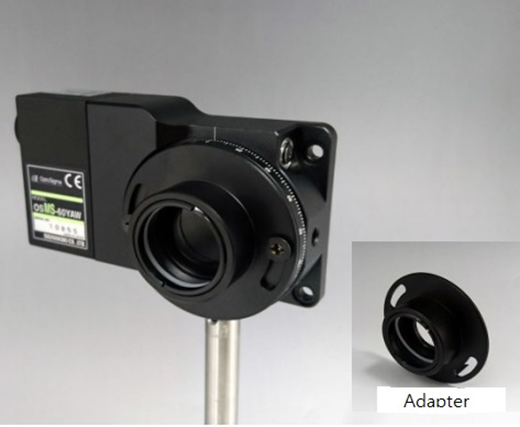

Compact motorized polarizer holders
페이지 정보
본문
|

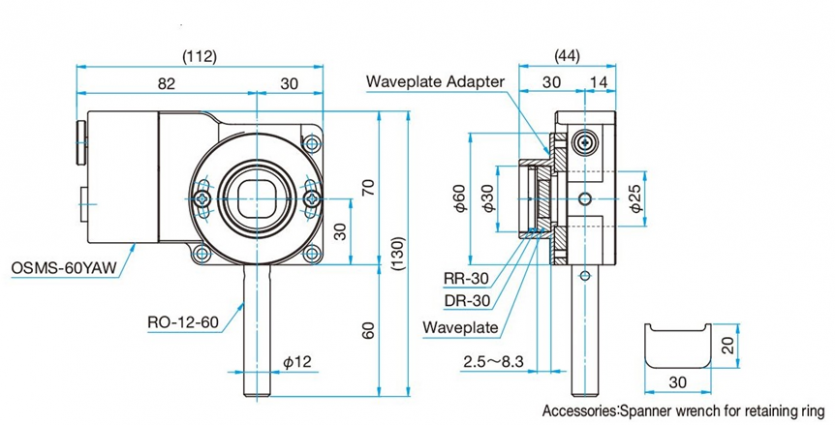

Model |
OSMS-60-WPQ-30 |
OSMS-60-WHD-30 (adapter) |
|
Composition |
OSMS-60YAW＋ OSMS-60-WHD-30＋ RO-12-60 |
- |
|
Compatible Optics Diameter［mm］ |
φ30 |
|
|
Compatible Optics Thickness［mm］ |
2.5~8.3 |
|
|
Weight［kg］ |
0.53 |
0.08 |
|
Rotation Range |
Move in the CCW direction to ∞, and stop at near 0 degree (−2.5°) in the CW direction. |
|
|
Resolution［°/pulse］ |
Full : 0.005° , Half : 0.0025° |
- |
|
MAX Speed［°/sec］ |
30 |
- |
|
Price［¥］ |
95,500 |
7,000 |
