psi

Model

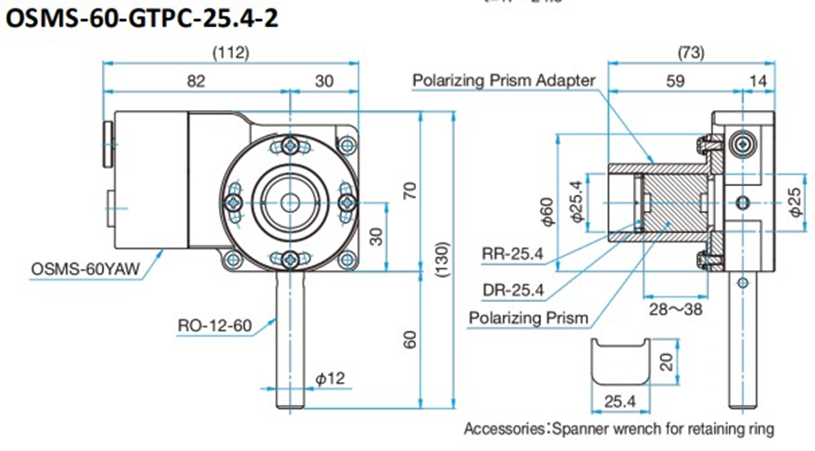

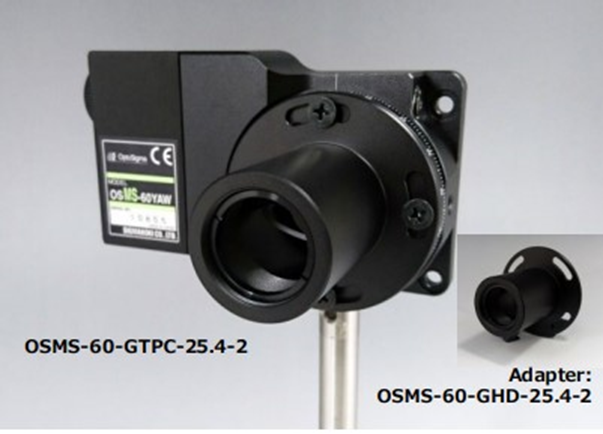

OSMS-60-GTPC-25.4-1/2

OSMS-60-GHD-25.4-1

OSMS-60-GHD-25.4-2

Composition

OSMS-60YAW＋ OSMS-60-GHD-25.4-1/2

＋ RO-12-60

Adapter 1

Adapter 2

Compatible Optics Diameter［mm］

Φ25.4

Compatible Optics Thickness［mm］

17~24.5/28~38

17~24.5

28~38

Weight［kg］

0.56/0.57

0.11

0.12

Rotation Range

Move in the CCW direction to ∞, and stop at near 0 degree (−2.5°) in the CW direction.

-

-

Resolution［°/pulse］

Full : 0.005° , Half : 0.0025°

-

-

MAX Speed［°/sec］

30

-

-

Price［¥］

95,500

7,000

7,000
