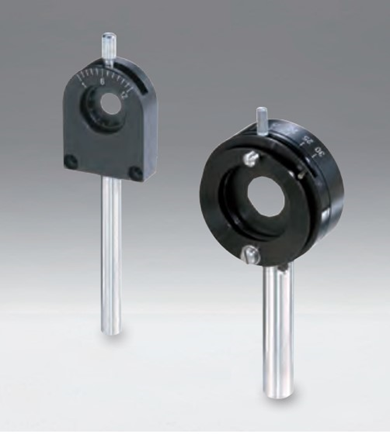

IRIS diaphragm Holders - IH-XX-Drawings
페이지 정보
본문
|

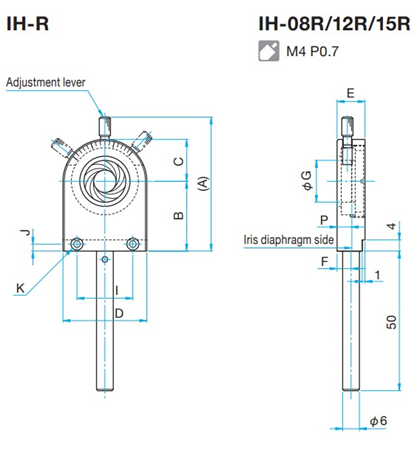

Model |
A [mm] |
B [mm] |
C [mm] |
D [mm] |
E [mm] |
F [mm] |
MAX Aperture Diameter φG [mm] |
I [mm] |
J [mm] |
K [mm] |
P [mm] |
|
IH-08R |
38.5 |
20 |
10 |
20 |
10 |
4.7 |
8 |
15 |
2.5 |
2-φ2.4 mounting hole, φ4.2 counter-bore |
4.9 |
|
IH-12R |
41 |
20 |
12.5 |
25 |
10 |
5.3 |
12 |
20 |
2.5 |
2-φ2.4 mounting hole, φ4.2 counter-bore |
5.2 |
|
IH-15R |
48 |
25 |
15 |
30 |
10 |
5 |
15 |
20 |
2.5 |
2-φ2.4 mounting hole, φ4.2 counter-bore |
5.2 |
|
IH-22R |
57.5 |
30 |
19 |
38 |
12 |
6 |
22 |
28 |
10 |
2-φ4.5 mounting hole, φ8 counter-bore |
6.2 |
|
IH-36R |
75 |
35 |
30 |
60 |
12 |
6.4 |
36 |
44 |
10 |
2-φ4.5 mounting hole, φ8 counter-bore |
6.9 |
|
IH-50R |
95 |
45 |
40 |
80 |
14 |
7.4 |
50 |
60 |
10 |
2-φ4.5 mounting hole, φ8 counter-bore |
7.9 |
|

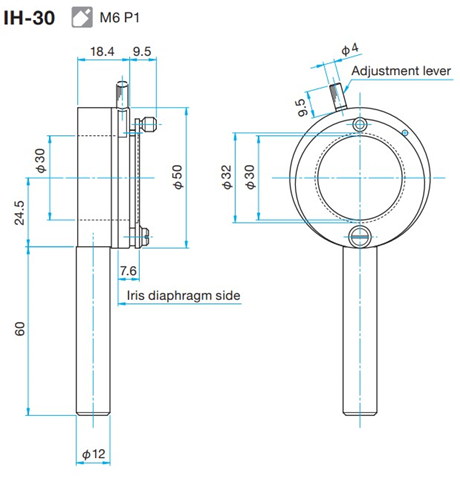

IH-30 |
58 |
24.5 |
25.5 |
50 |
- |
- |
30 |
- |
- |
- |
7.6 |
|
Model |
Options specified* |
Price 〔￥〕 |
Aperture Diameter φ |
Weight [kg] |
|
|
Max [mm] |
Min [mm] |
||||
|
IH-08R |
N |
9,900 |
8 |
0.7 |
0.03 |
|
IH-12R |
N |
10,800 |
12 |
0.8 |
0.03 |
|
IH-15R |
N |
11,700 |
15 |
0.9 |
0.09 |
|
IH-22R |
N/EE/UU |
14,400 |
22 |
0.9 |
0.10 |
|
IH-36R |
N/EE/UU |
18,900 |
36 |
1.3 |
0.15 |
|
IH-50R |
N/EE/UU |
29,700 |
50 |
1.5 |
0.20 |
|
IH-30 |
- |
10,800 |
30 |
1.0 |
0.12 |
