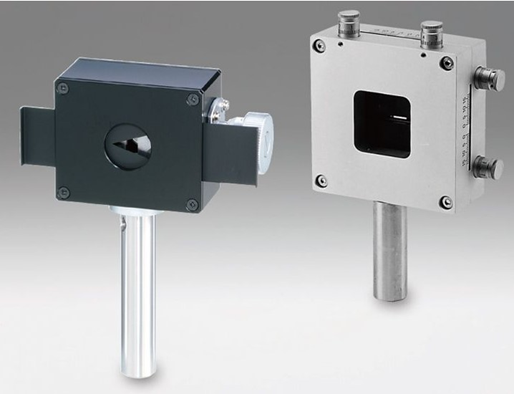

Adjustable slits - PSL / SLX
페이지 정보
본문
For UV/VIS/IR
|
Model |
Options specified* |
Price 〔￥〕 |
Blade Material |
Slit Width Variable Range [mm] |
Slit Width Scale MIN Reading [μm/DIV] |
Slit Length Variable Range [mm] |
Weight [kg] |
|

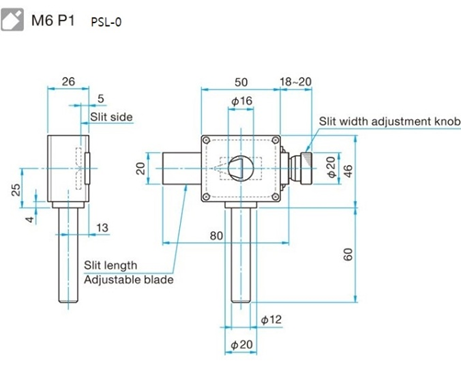

PSL-0 |
EE/UU |
95,000 |
Stainless steel (No Finish) |
0 − 4 |
20 |
0 − 12 |
0.24 |
For X-ray
|
Model |
Options specified* |
Price 〔￥〕 |
Blade Material |
X-ray Resistance [keV/cm2 ] |
Blade Variable Range [mm] |
Blade Position Scale MIN Reading [μm/DIV] |
Weight [kg] |
|

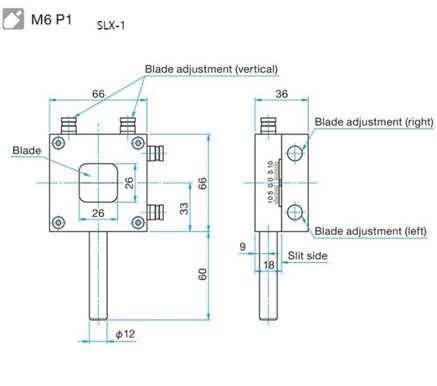

SLX-1 |
UU |
160,000 |
Tantalum (No Finish) |
300 |
0 − 10 |
10 |
0.52 |
