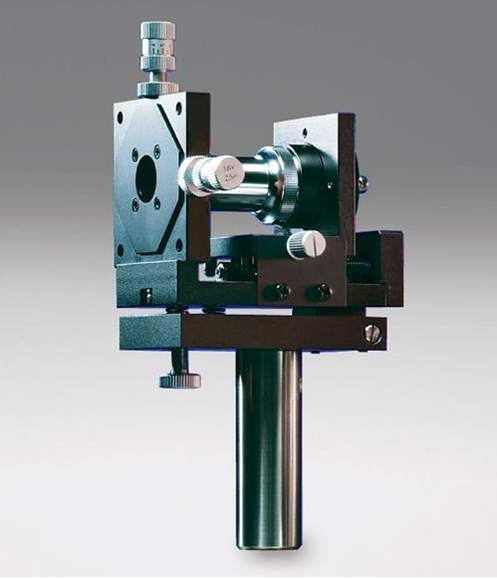

Spatial filter Holders – Differential adjustment screw type
페이지 정보
본문
|
Model |
Price 〔￥〕 |
Objective Lens |
Tilt adjustment range [ ° ] |
Tilt adjustment Resolution [°/rotation] |
Objective Lens Front & Back Adjustment Range [mm] |
Objective Lens Front & Back resolution [mm/rotation] |
Pinhole Diameter φ [μm] |
Pinhole XY Adjustment Range [mm] |
Pinhole XY Coarse Resolution [mm/rotation] |
Pinhole XY Scale MIN Reading [mm/DIV] |
Weight [kg] |
|

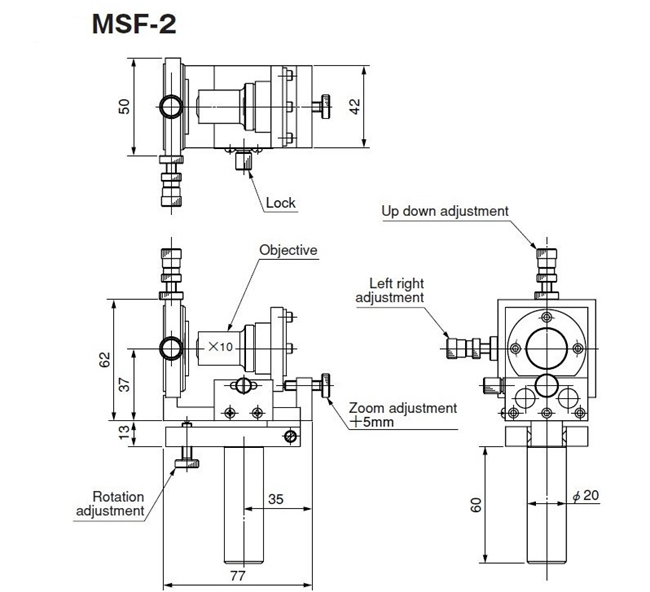

MSF-2 |
130,000 |
OBL-10A |
±7 |
0.54 |
±5 |
0.5 |
25 |
±1.75 |
0.5 |
0.0025 |
0.53 |
