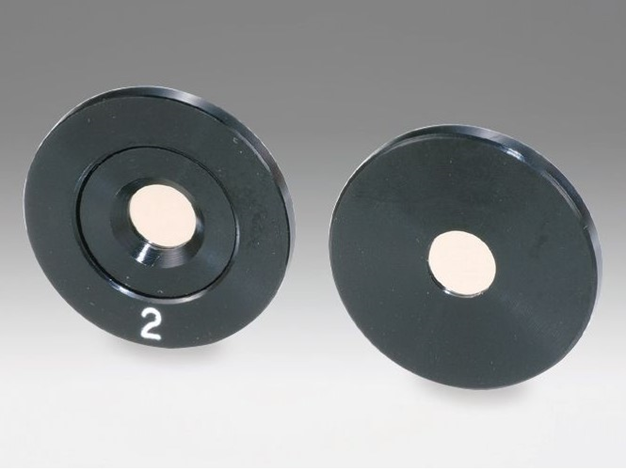

Precision pinholes/Slits – Common specifications
페이지 정보
본문
|
Model |
PA |
PA-HEL |
FSL |
|
Hole Geometry |
Perfect circle |
Perfect circle |
Slit |
|
Pinhole Material |
Nickel Foil |
Nickel Copper |
Nickel Foil |
|
Thickness [μm] |
20±5 |
20±5 |
20±5 |
|
Pinhole Finish |
None |
Gold coat (both faces |
None |
|
Damage Threshold (reference) |
- |
50MW/cm2 (@700nm) |
- |
|
Wavelength Used Any |
Any |
700nm − 10.6μm |
Any |
|
Frame Material |
Aluminum Frame |
||
|
Frame Finish |
Black Anodized |
||
