Accessories for Fiber optic holders - Optical Fiber Collimator Adj…
페이지 정보
본문
|

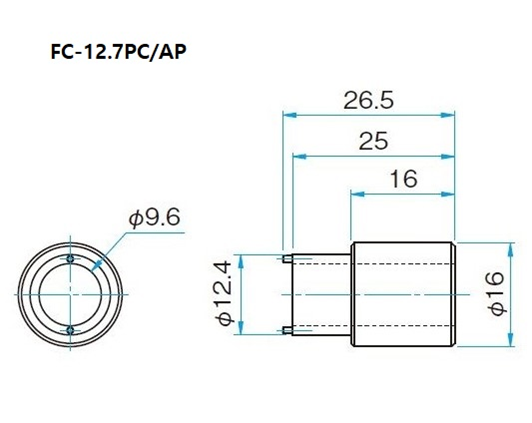

Model |
FC-12.7PC |
FC-12.7APC |
FC-25.4PC |
FC-25.4APC |
|
OD of collimation lens φ[mm] |
<9.2 |
<9.2 |
<9.2 |
<9.2 |
|
Collimation adjustment range [mm] |
3~11 |
3~18 |
3~11 |
3~18 |
|
Collimation adjustment resolution [[mm/rotation] |
0.5 |
0.5 |
0.5 |
0.5 |
|
Lens Mounting Screws[mm] |
M9 P0.5 |
M9 P0.5 |
M9 P0.5 |
M9 P0.5 |
|
Outer diameter of the retainer * φ[mm] |
12.7 |
25.4 |
12.7 |
25.4 |
|
Frame material |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
|
Weight [kg] |
0.016 |
0.028 |
0.016 |
0.028 |
|
Price 〔￥〕 |
9,500 |
11,000 |
9,500 |
11,000 |
