Precision Bare fiber optic holders MFH-FOP-X
페이지 정보
본문
|
Model |
Price 〔￥〕 |
Adjustment XY Range [mm] |
Adjustment XY Resolution [mm] |
Fiber clad diameter φ [μm] |
Adjustment Tilt Range [ ° ] |
Tilt Resolution [°/rotation ] |
Adjustment Rotation Range [ ° ] |
Rotation Resolution [°/rotation ] |
Weight [kg] |
|

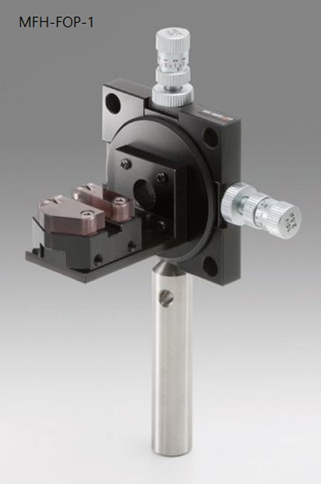

MFH-FOP-1 |
60,000 |
±1.25 |
0.05 |
125~250 |
- |
- |
- |
- |
0.2 |
|

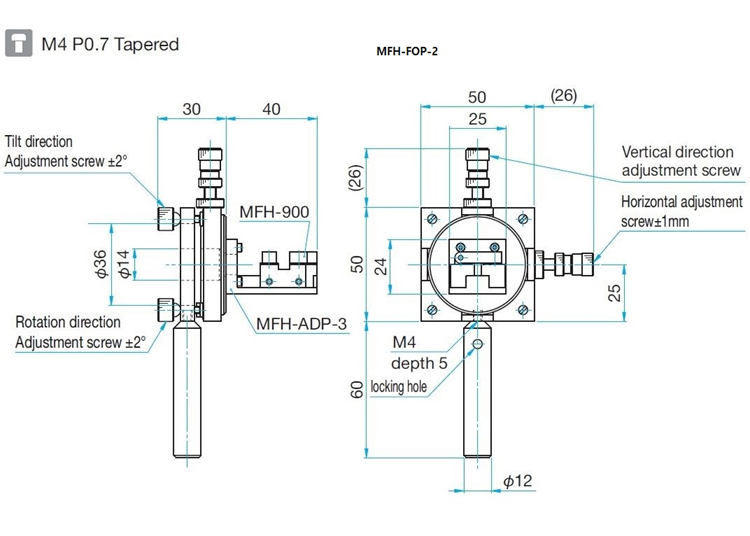

MFH-FOP-2 |
68,000 |
±1.25 |
0.05 |
125~250 |
±2 |
about 0.7 |
±2 |
about 0.7 |
0.2 |
