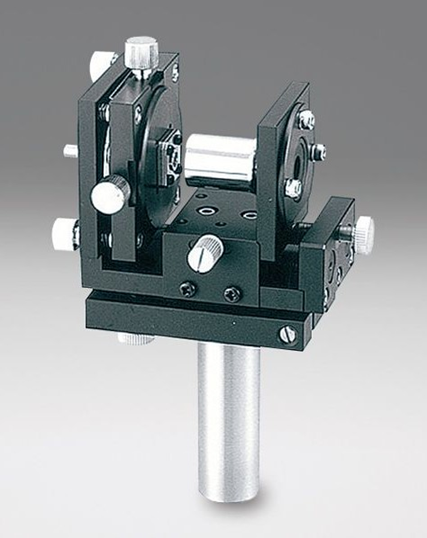

Adjustable Fiber Collimator - FOPT
페이지 정보
본문
|
Model |
Price 〔￥〕 |
Focal length Objectives Lens [mm] |
Centering Adjustment Range [mm] |
Focus Adjustment Range [mm] |
Fiber Adjustment Range Tilt・Rotation [ ° ] |
Holder Adjustment Tilt Range [ ° ] |
Centering Adjustment Resolution [mm/rotation] |
Fiber Adjustment Resolution |
Holder Adjustment Resolution Tilt [°/rotation ] |
Weight [kg] |
|
|
Tilt [°/rotation] |
Rotation [°/rotation] |
||||||||||
|
FOPT-FC |
96,000 |
16.6 |
±1 |
±5 |
±2 |
±2.5 |
0.5 |
about 0.7 |
about 0.7 |
about 0.53 |
0.55 |
|
FOPT-SMA |
96,000 |
16.6 |
±1 |
±5 |
±2 |
±2.5 |
0.5 |
about 0.7 |
about 0.7 |
about 0.53 |
0.55 |
