Fiber Optics Holders for ferrule - OFH/OFH-DM
페이지 정보
본문
|
Model |
Price 〔￥〕 |
Centering Adjustment Range [mm] |
Adjustment Range |
Focus Adjustment Range [ mm ] |
Centering Adjustment Resolution [mm/rotation] |
Centering Fine Adjustment Resolution [mm/rotation] |
Adjustment Resolution |
Weight [kg] |
||
|
Tilt [°/rotation]] |
Rotation [°/rotation] |
|||||||||
|
Tilt [ ° ] |
Rotation [ ° ] |
|||||||||
|

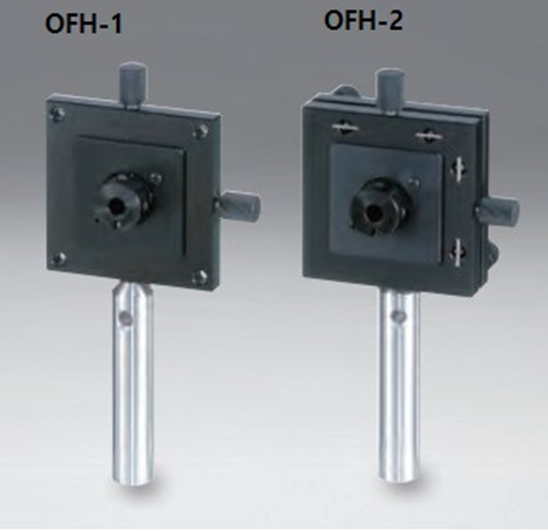

OFH-1 |
16,800 |
±1.25 |
±2 |
- |
- |
0.5 |
- |
- |
- |
0.12 |
|
OFH-2 |
23,200 |
±1.25 |
±2 |
±2 |
±1.25 |
0.5 |
- |
about 0.7 |
about 0.7 |
0.15 |
|
OFH-1DM |
28,800 |
±1.25 |
±2 |
- |
- |
0.5 |
0.05 |
- |
- |
0.14 |
|
OFH-2DM |
35,200 |
±1.25 |
±2 |
±2 |
±1.25 |
0.5 |
0.05 |
about 0.7 |
about 0.7 |
0.17 |
